Introducing
Stratus Shield

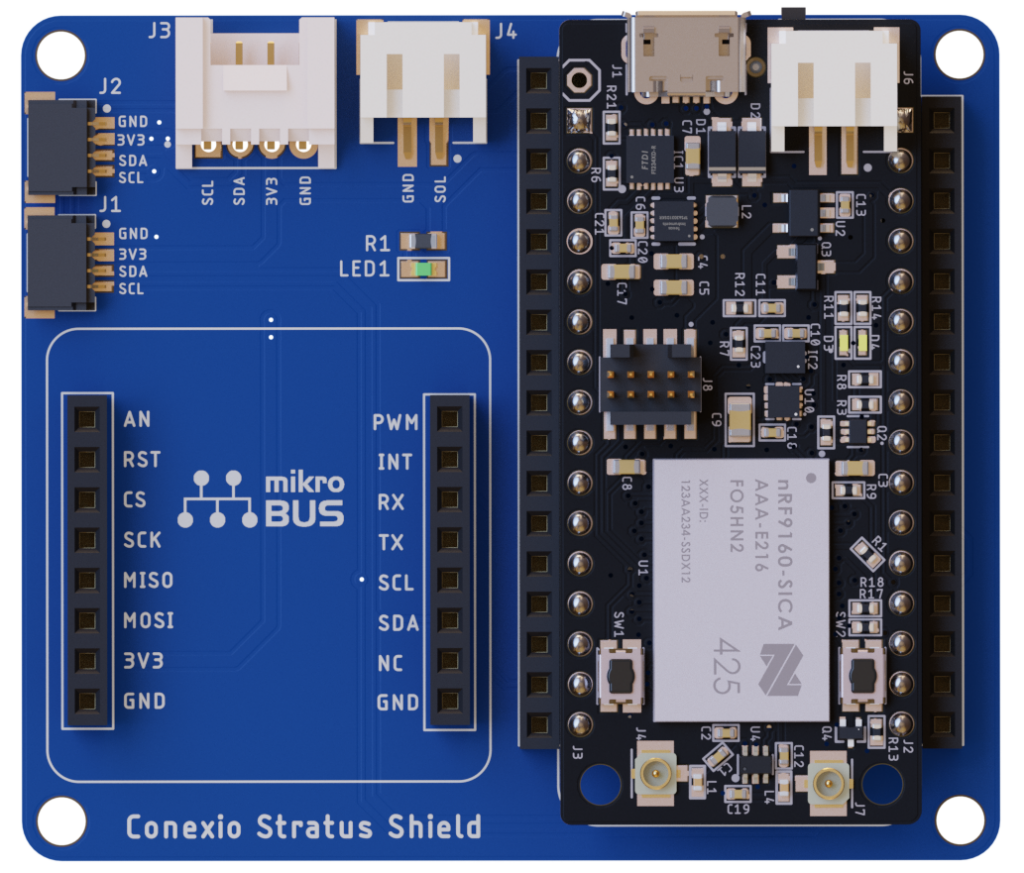

Now you can use hundreds of sensor modules with
Conexio Stratus dev kit.
Forget about breadboard and soldering iron, working with a Stratus shield
requires no soldering and minimal wiring. Just plug the sensors, actuators,
or displays into this shield via the standard cables, allowing you to focus
on coding and application creation.
Isn’t that cool!

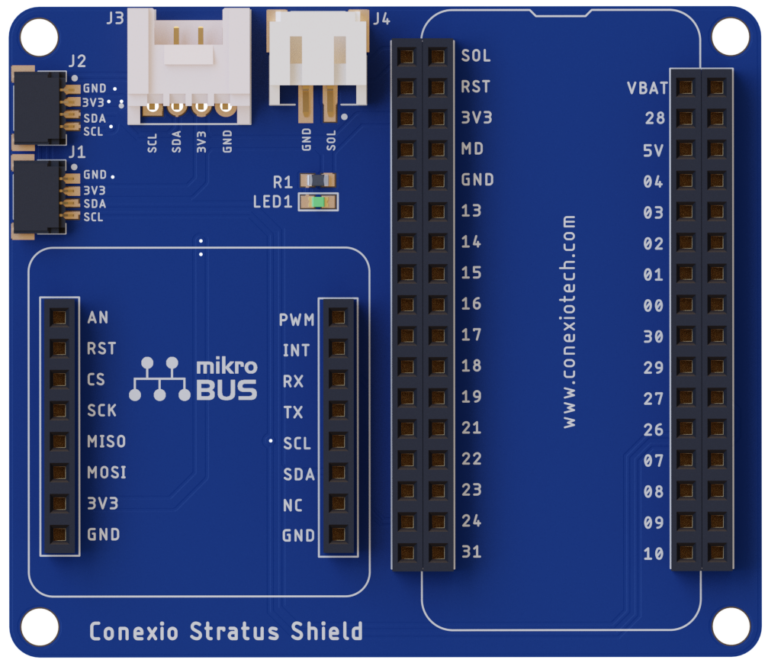

The shield supports:
- 1 x mikro BUS: add-on board standard from Mikroe, allowing to connect over 800+ click boards.
- 2 x Sparkfun Qwiic connector: SparkFun's Qwiic Connect System, allowing to connect over 100+ Qwiic products.
- 1 x Grove I2C connector: Grove is a modular, standardized connector prototyping system by Seeedstudio.
- 1 x 2 Pin JST connector for plugging the solar panel input.
- 1 x user-programmable LED.
- 3.3V operating voltage.
Compatible with 800+ sensor modules & click boards from
